Introduction
When I help homeowners, small businesses, and farm operators plan reliable water systems in 2025, one component keeps shaping the conversation: the pressure switch for a water pump. It might be small, but it’s central to stable pressure, pump protection, and day-to-day convenience. With smarter accessories and app-linked controllers on the rise, it’s worth understanding how a classic pressure switch works, what’s evolving, and the best practices for safety. If you’re weighing options for a new install or a replacement, this guide walks through the essentials so you can make a confident decision for Malaysia’s conditions—where power, water quality, and demand can vary. For a concise reference you can bookmark, I’ve linked a simple overview here: pressure switch water pump.
What is a Pressure Switch?

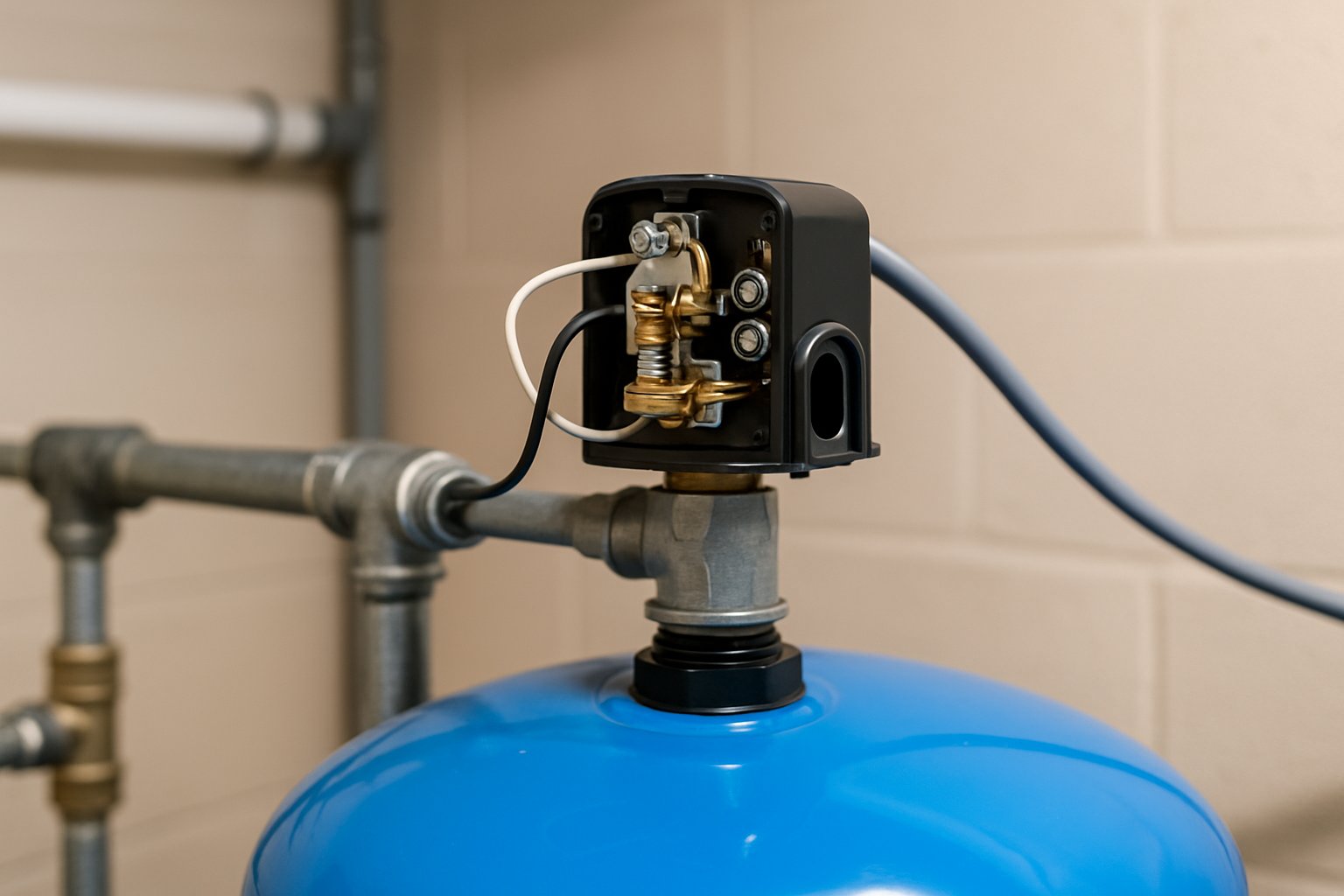

A pressure switch is a mechanical or electro-mechanical device that turns your pump on and off based on water pressure in the system. In a typical house or small building with a storage tank or pressure tank, the switch keeps pressure within a set range, such as 30–50 psi or 40–60 psi. The switch helps balance comfort at the tap with pump longevity, so you get steady showers without overworking the motor. Understanding this fundamental role can enhance your approach to water pump pressure switch maintenance and upgrades.
How Does a Pressure Switch Work?
Inside the switch, a diaphragm or piston senses pressure and moves a spring-loaded mechanism. When pressure falls below the cut-in setting, the contacts close and power flows to the pump; when pressure rises to the cut-out setting, the contacts open and the pump stops. This simple loop maintains a target window while minimizing short cycling. In many Malaysian setups, you’ll see a 240V circuit feeding the pump via the switch, so safe wiring and proper earth are essential for reliable operation. Additionally, regular checks on these components can prevent unexpected failures and ensure consistent performance over time.
Why is a Pressure Switch Important?
For most pumps, the switch is the traffic controller that prevents unnecessary wear while ensuring your taps don’t sputter. It also serves as a safeguard: if the system loses pressure due to leaks, it prevents the pump from running endlessly. In the current landscape, efficient control isn’t just about comfort; it’s about reducing energy waste and protecting equipment in real-world usage. This importance extends to optimizing overall system efficiency and longevity in diverse applications like homes and farms in Malaysia.
Benefits for System Efficiency
Well-tuned pressure settings reduce the number of start/stop cycles, and fewer cycles usually mean longer motor and contact life. A stable pressure band also helps water-using appliances perform consistently, which can lower overall energy draw. In Malaysia, where electricity costs and pump duty cycles matter, fine-tuning your settings can pay back over time and keep monthly costs predictable. Moreover, integrating this with energy-efficient pumps can further enhance savings and environmental benefits.
Role in Preventing Damage
Short cycling, dry running, and overheating are the enemies of pump health. A healthy switch and pressure tank pairing prevents rapid on/off activity, reducing heat and mechanical stress. When integrated with modern protections—like thermal overloads, low-water cutouts, and surge protection—you reduce the risk of pump burnout and protect downstream fixtures from pressure spikes. This proactive approach not only extends equipment life but also minimizes costly repairs and downtime in critical water systems.
Main Components of a Pressure Switch
Even basic switches share a common set of parts that each play a role in accuracy, durability, and safety. Knowing these parts makes maintenance easier and helps you spot issues early. It also helps you choose better-quality components when you’re replacing or upgrading. Familiarizing yourself with these elements can empower better decision-making for your water pump pressure switch needs.
Key Parts and Their Functions
The diaphragm or piston senses pressure and translates it into mechanical motion. Springs and adjustment nuts allow you to set cut-in and cut-out pressures, forming the operating band. The electrical contacts open and close the circuit to the pump motor, and their condition influences how reliably your pump starts. The enclosure protects the mechanism from dust and moisture, which is important in humid pump rooms. The pressure port connects to the system, often via a tee near the tank or pump discharge. In more advanced or premium models, you’ll find an integrated low-pressure cutout function that forces a manual reset after a severe pressure drop, protecting the motor from dry run conditions.
Everything You Need to Know About Rubber O-Rings
Rubber O-rings are small but critical for sealing the pressure port, cover, or any removable interface. A hardened or cracked O-ring can cause subtle leaks that lead to false pressure readings or erratic cycling. In tropical climates, heat and chlorine in water can accelerate wear, so inspecting O-rings during routine servicing is a best practice. When replacing O-rings, match size and material: NBR (nitrile) is commonly used for water and is cost-effective; EPDM offers better resistance to hot water and many chemicals. A thin film of compatible lubricant can help with sealing and reduce future sticking, but avoid petroleum products if the O-ring material is incompatible. Keeping spare O-rings on hand can save downtime and avoid RM-callouts for small faults.
Pressure Switch Symbols and Markings
Pressure switches often carry symbols describing electrical ratings, environmental protection, and operating ranges. Understanding the markings helps you pick a device that suits your pump, wiring, and installation environment. It also prevents unsafe pairings with motors that exceed the contact rating. This knowledge is particularly useful when selecting or troubleshooting a water pump pressure switch in Malaysia’s varied conditions.
Common Symbols Explained
Look for the voltage and current rating first; this tells you the maximum load for the switch contacts. IP ratings indicate dust and water ingress protection, helpful in damp pump rooms or outdoor installations. You’ll also find the pressure range printed or engraved, showing the safe adjustment window for the springs. These symbols ensure compatibility and safety, reducing the risk of malfunctions. Familiarizing yourself with them can streamline installation and maintenance processes.
| Marking/Symbol | Meaning | Why It Matters |
|---|---|---|
| 240V~ 50/60Hz | AC voltage and frequency rating | Matches Malaysia mains and motor input. |
| 16A (Resistive) | Maximum contact current | Ensures contacts can safely switch the motor load. |
| IP54/IP65 | Ingress protection class | Higher IP resists dust/splashing in pump rooms. |
| Cut-in/Cut-out (e.g., 30–50 psi) | Factory pressure band | Shows your starting point for adjustments. |
| Manual Reset | Low-pressure lockout present | Prevents dry-run damage; requires manual restart. |
Pressure Switch Location in Systems
Location impacts how accurately the switch senses system pressure and how easy it is to service. In most residential setups, the switch is mounted near the pressure tank or on a manifold close to the pump discharge. Good access and a dry environment improve longevity and make safe adjustments easier. Proper placement is key to optimizing the performance of your water pump pressure switch.
Typical Installation Points
A common location is on a 1/4″ port of a brass tee feeding the pressure tank. This gives the switch a stable, less turbulent pressure signal, which reduces overshoot and chatter. If the switch is installed far from the tank, long or narrow sensing lines can delay response and cause cycling issues. In booster sets for multi-storey buildings, switches may be on a header downstream of the pump, with gauges nearby for quick diagnostics. For outdoor rural pumps, keep the switch sheltered and above flood risk. Always allow space for a screwdriver and meter probes, and avoid cramping it behind pipework where you can’t see the gauge or access the terminals safely.
Water Pump Pressure Switch vs. Pressure Controller
In 2025, I see two popular control paths: traditional pressure switches and electronic pressure controllers. Both regulate pump operation, but they differ in how they sense conditions, what protections they include, and how they integrate with apps and analytics. Your choice should weigh safety, budget, and how much visibility you want into system performance. This comparison can help you decide the best fit for your water system needs in Malaysia.
Key Differences and Use Cases
A mechanical pressure switch is simple, proven, and affordable, often ranging from roughly RM60–RM250 depending on build quality and features. It pairs well with a pressure tank to stabilize pressure and reduce cycling. An electronic pressure controller adds dry-run protection, flow sensing, soft-start features, and sometimes app connectivity or data logging via Wi‑Fi or Bluetooth. For homes wanting minimal fuss, a switch-and-tank setup remains a strong, cost-effective default. For small businesses or apartments where consistent pressure and alarms matter, a controller can justify its higher cost—often RM300–RM800—especially when remote alerts help prevent water service interruptions. If you value data, trend graphs, and leak notifications on your phone, the controller path makes sense; if you prefer low-cost simplicity with robust safety practices, a good switch is still hard to beat.
| Feature | Pressure Switch | Pressure Controller |
|---|---|---|
| Control Method | On/off by pressure band | Electronic logic by pressure/flow |
| Pressure Tank Needed | Yes, for best performance | Often no, but can be used |
| Safety Protections | Basic; add-ons possible | Built-in dry-run/overload features |
| App/Analytics | No | Common in newer models |
| Cost (approx.) | RM60–RM250 | RM300–RM800 |
| Best For | Simple, budget installs | Monitoring and convenience |
Pressure Switch Adjustment
Adjusting a switch sounds simple, but doing it safely and consistently is where best practices matter. I recommend measuring pressure with a reliable gauge and making small, documented changes. If your water quality is poor or your pump is oversized, consider addressing those first to avoid masking systemic issues with aggressive settings. Proper adjustment enhances the efficiency and safety of your water pump pressure switch.
Step-by-Step Adjustment Guide
Start by turning off power at the breaker and confirming the circuit is dead with a tester. Note the current cut-in and cut-out by observing the gauge during a normal cycle, so you have a baseline to return to. Identify the main spring (which moves both cut-in and cut-out) and the differential spring (which changes the gap between them), then make small, quarter-turn adjustments. To adjust, increase the main spring to raise both cut-in and cut-out or decrease to lower both, and tweak the differential spring to widen or narrow the band, such as from 20 psi to 25 psi spread. After adjustments, restore power, run water, and observe at least two full cycles before making further changes. Document your settings, including date and reason for changes, and in Malaysia’s warm climate, re-check seasonally; if the pump short cycles despite a wider differential, inspect the pressure tank’s precharge and bladder condition.
Safety Precautions
Always isolate power before removing the switch cover; exposed terminals carry mains voltage. Work with dry hands, on a dry floor, with proper lighting to reduce error risks. If you see heat discoloration on contacts or smell burnt insulation, stop and have a qualified electrician assess the wiring and contact condition. Use insulated tools and avoid over-tightening adjustment screws, which can damage the mechanism. Replace cracked enclosures or failed cable glands to maintain IP protection, especially in damp pump rooms. If you suspect dry-run risks, add a low-water cutout or consider an electronic controller as an added safety layer.
Pressure Switch Malfunctions and Troubleshooting
When a system misbehaves, the switch is a common suspect—but not always the culprit. I approach faults methodically: verify pressure, check electrical continuity, and confirm tank precharge before replacing parts. This keeps costs down and prevents repeat failures. Effective troubleshooting is essential for maintaining a reliable water pump pressure switch system.
Common Issues
Short cycling often points to a waterlogged or undercharged pressure tank rather than the switch. Failure to start can be a tripped overload, burnt contacts, or insufficient incoming voltage. Failure to stop may indicate a stuck contact or a mis-set cut-out, but it can also be due to a pump that cannot reach the target pressure because of clogged filters or leaks. Other symptoms include contact chatter from water hammer, which is best addressed with proper piping supports or a hammer arrestor. Erratic cut-in/cut-out could be a cracked diaphragm or debris in the sensing port. Water ingress inside the enclosure leads to corrosion and unreliable operation, so replace seals and improve placement if condensation is frequent.
Troubleshooting Steps
Begin with a visual inspection: look for leaks, rust, and frayed cables. Check the gauge during operation to see actual pressure behavior and compare it to your settings. Test electrical continuity across contacts with power off, and confirm the motor draws expected current when running. Clean or replace the small orifice/port if you suspect blockage; a clogged port delays pressure feedback and confuses the mechanism. Verify pressure tank precharge (typically 2 psi below cut-in) with pump off and system drained; adjust with a tire inflator. If contacts are pitted, you can gently dress them for a temporary fix, but replacement is the safer long-term solution. When issues repeat, step back and consider system-level constraints: an undersized pump, clogged filters, or high-rise static head may be pushing the switch beyond its comfortable range. In such cases, recalibrating the band or shifting to a controller with smarter protections can restore reliability. Keep notes and timestamps—trend awareness is invaluable for quick diagnosis.
FAQs
Here are quick answers to questions I hear most often. I keep them brief but practical so you can decide what to try now and what to schedule with a professional. Use them as a starting point for safe, confident maintenance. These FAQs address common concerns about pressure switch water pumps in Malaysia.
What pressure range should I use for a typical home?
For most homes, a 30–50 psi or 40–60 psi band works well, with the tank precharged 2 psi below the cut-in. Choose the lower band for gentler operation and the higher band for firmer shower pressure. If your building is multi-storey or uses restrictive filters, you may prefer the higher band, but ensure the pump can comfortably reach the cut-out. Always monitor performance after setting to ensure optimal operation.
How often should I service or check the pressure switch?
A quick visual check every three months and a functional test every six months is a good baseline. Inspect for moisture, corrosion, and cable gland integrity, and verify the gauge aligns with expected cut-in and cut-out. In harsh environments or where water quality is poor, shorten the interval and keep spare O-rings on hand. Regular maintenance can prevent major issues and extend the life of your system.
When is an electronic pressure controller a better choice?
Choose a controller if you want dry-run protection, alarm notifications, and potential app-based monitoring. They are especially useful for rental properties, small commercial setups, or holiday homes where early alerts reduce damage risk. If you value simplicity and the lowest upfront cost, a well-set pressure switch with a tank remains a solid, safe choice. Consider your specific needs to make the best decision.
